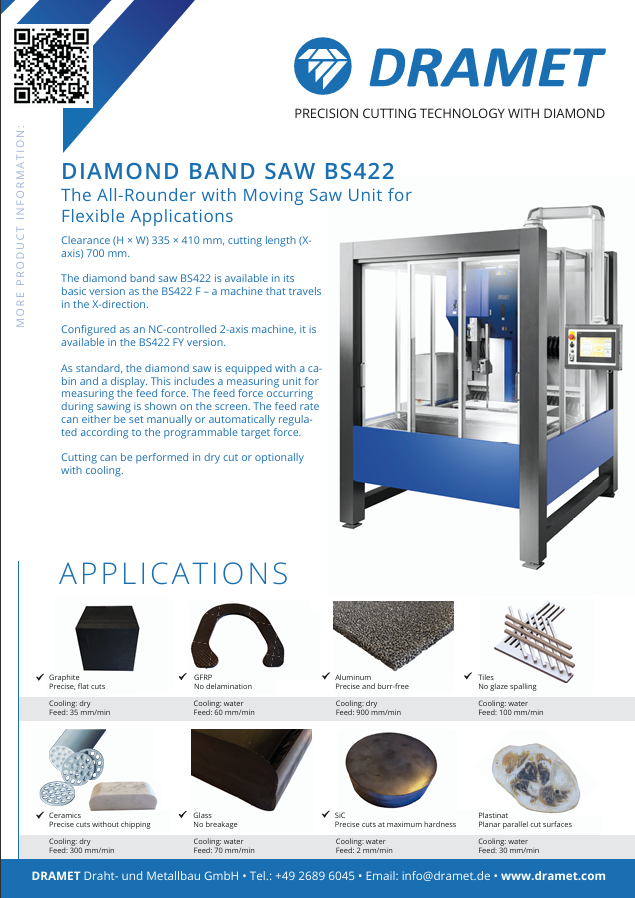

- Diamond Band Saw BS422 A – H600 FY
Clearance (HxW) 610 × 410 mm, cutting length (X-axis) 620 mm.
The diamond band saw BS422 A – H600 FY with driven traveling column has a band unit and two deflection rollers. The diamond saw band runs endlessly over two rollers and the upper roller can be adjusted in height.
The machine cabin is protected by Plexiglas panels. For safety reasons, the machine switches off automatically when the door is open. Various cutting options make the machine a high-performance unit. It can be cut with water and cooling.
The diamond band saw BS422 A - H600 FY cuts different materials
Optical glass cutting with diamond band saws
Materials for diamond band saws, glass sawing, cutting, abrasive cutting
GRP sawing with diamond band saws
Materials for diamond band saws, cutting CFRP
Sawing graphite with diamond band saws
Materials for diamond band saws, graphite cut-off grinding
Industriekeramik sägen mit Diamantbandsägen
Materialien für Diamantbandsägen, Glas sägen, schneiden, trennschleifen
Technische Keramik Bearbeitung mit Diamantbandsägen
Technische Keramik Bearbeitung mit Diamantbandsägen
Pathologie Säge mit Diamantband
Materialien für Diamantbandsägen, Plastinate sägen, schneiden, trennschleifen, präparieren
Further technical details on the diamond saw BS422 A - H600 FY
The BS422-H600 FY driven traveling column consists of a band unit with two deflection rollers D = 420 mm and a passage (H x W) of 610 x 410 mm. The diamond saw blade runs endlessly over two rollers. It is driven and pneumatically tensioned by the upper roller, which is adjustable in height. The band is driven by a frequency converter-controlled 3 KW three-phase motor. The belt tension is set via the adjustable air pressure on the pressure reducer. The belt speed is infinitely variable from 200 – 3000 m/min.
The belt unit can be moved program-controlled with a ball screw and servo motor (X-axis). The traverse paths and feed speeds are programmable. The belt unit can be positioned using buttons. Control: Mitsubishi PLC control with touchscreen.
The feed force generated during sawing is displayed on the screen. The feed rate and cutting speed can either be set manually or controlled automatically according to the programmable target force.
The machine cabin is protected from splash water, noise and dust by Plexiglas panels. The cabin doors are monitored for increased safety. The machine switches itself off when the door is open.
The machine can be used for dry cutting or optionally with cooling. For dry cutting, a vacuum cleaner is connected to the extraction socket provided. In the stainless steel machine version, pure water without additives can be used for cooling.
| Technical Data | Beschreibung |
|---|---|
| Length: | 2169 mm |
| Width: | 2001 mm |
| Height: | 2621 mm |
| Culvert: | 610 mm x 410 mm |
| Travel Distance (X, Y): | 620 mm x 420 mm |
| Idlers Ø: | 420 mm |
| Guide Rollers Ø: | 70 mm |
| Standard Band: | 0,7 mm x 16 mm, Length 3800 mm |
| Belt Speed: | 200 – 3000 m/min |
| Belt Tension: | 10.000 N |
| Drive: | Three-Phase Motor 3 KW |
| Weight: | 550 kg |
