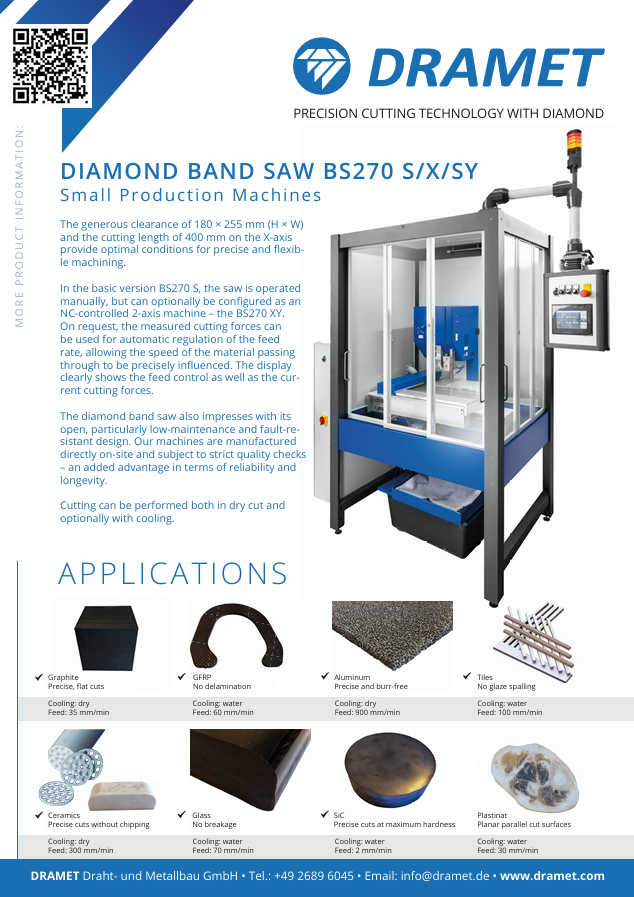

- Diamond Band Saws BS270 S/X/SY
Clearance (HxW) 180×255 mm, cutting length (X-axis) 400 mm.
In the basic version BS 270 S, the saw is operated manually. However, the diamond saw can also be equipped as an NC-controlled 2-axis machine, BS270 XY.
The sawing forces can optionally be used to influence the feed rate, which defines the speed of the material passing through. In this case, the display shows the feed control or the sawing forces.
The diamond band saw also impresses with its open and interference-resistant design. Our machines are built on site and are subject to the highest quality tests.
Sawing is possible in dry cutting and optionally with cooling.
Further technical details on the BS230 XY diamond saw
Optical glass cutting with diamond band saws
Materials for diamond band saws, glass sawing, cutting, abrasive cutting
GRP sawing with diamond band saws
Materials for diamond band saws, cutting CFRP
Sawing graphite with diamond band saws
Materials for diamond band saws, graphite cut-off grinding
Cutting industrial ceramics with diamond band saws
Materials for diamond band saws, sawing glass, cutting, grinding
Technical ceramics processing with diamond band saws
Technical ceramics processing with diamond band saws
Pathology saw with diamond band
Materials for diamond band saws, sawing, cutting, grinding, and preparing plastinates
Further technical details on the BS270 S/X/XY diamond saws
The diamond saw band runs endlessly over two rollers. It is driven and pneumatically tensioned by the upper roller, which is adjustable in height. The band tension is set via the adjustable air pressure on the pressure reducer. The belt is guided close to the processing point by two backlash-free guide roller units. The belt is driven by a frequency converter-controlled three-phase motor. The belt speed is infinitely variable from 200 – 2200 m/min.
The belt unit can be moved program-controlled with a ball screw and the servo motor (X-axis). The traverse paths and feed speeds are programmable. The tables can be positioned using buttons. Control: Mitsubishi PLC control, touch screen with menu-guided programming. The BS270 X becomes the NC-controlled 2-axis machine BS270 XY by equipping it with a Y-table driven by a servo motor.
In the basic version, the machine is operated manually. It can be tilted with an adjusting screw so that the linearly guided X-table moves under its own weight. It can be used for dry cutting or optionally with cooling. For dry cutting, a suction cup is connected to the suction nozzle provided. In the stainless steel machine version, pure water without additives can be used for cooling.
| Technical Data | Description |
|---|---|
| Length: | 1260 mm |
| Width: | 825 mm |
| Height: | 1840 mm |
| Culvert: | 180 mm x 255 mm |
| Travel Distance (X, Y): | 400 mm, 240 mm |
| Idlers Ø: | 266 mm |
| Guide Rollers Ø: | 47 mm |
| Standard Band: | 0,7 mm x 8 mm, Length 1870 mm |
| Belt Speed: | 200 – 2200 m/min |
| Belt Tension: | 3.000 N |
| Drive: | Three-Phase Motor 750 W |
| Weight: | 110 kg |
Additional options
Y stop
Manually adjustable fence resting on the X-table for the Y-direction (with clamping). The workpiece can be clamped on and moved in parallel to cut off slices.
Y-table
Workpiece support table with linear guidance in the Y-direction with drilling pattern for clamping the workpieces. The work table has 210 mm infeed path. It is positioned with a handwheel. The respective position can be read off a digital display with an accuracy of 0.01 mm.
Coolant system with filter insert
Collecting tray with drain into the coolant tank, coolant pump, coolant supply with stopcock, automatic control of the coolant system. A filter fleece measuring approx. 0.7 x 0.7 meters can be inserted and replaced as required
Coolant system with deep-bed belt filter
Collecting tray with outlet into the deep-bed belt filter, filter fleece roll on transport roller, deep-bed belt filter with collection container, coolant pump, coolant supply with stopcock, automatic control of the coolant system.
NIRO version Stainless steel version
Support and plates of the machine and the coolant system made of aluminum or stainless steel, shafts and bearings made of stainless steel. With this design, pure water can be used without additives
HD-BA
High-pressure coolant pump, supply line, nozzle for belt cleaning
BS-LL
Line laser for displaying the cutting line
Reinforced belt drive motor
1300 watt belt drive controlled by frequency converter. Useful when high torque is required at belt speeds above 1300 m/min. Surcharge compared to the 0.75 W drive.
Cabin lock
The cabin is automatically locked during the cutting process.
T-slot table
T-slot table made of aluminum for workpiece support Linear guide with undergrip. Surcharge for the flat aluminum standard table of the basic version.
5380
Power socket for connection and automatic control of an extraction unit
