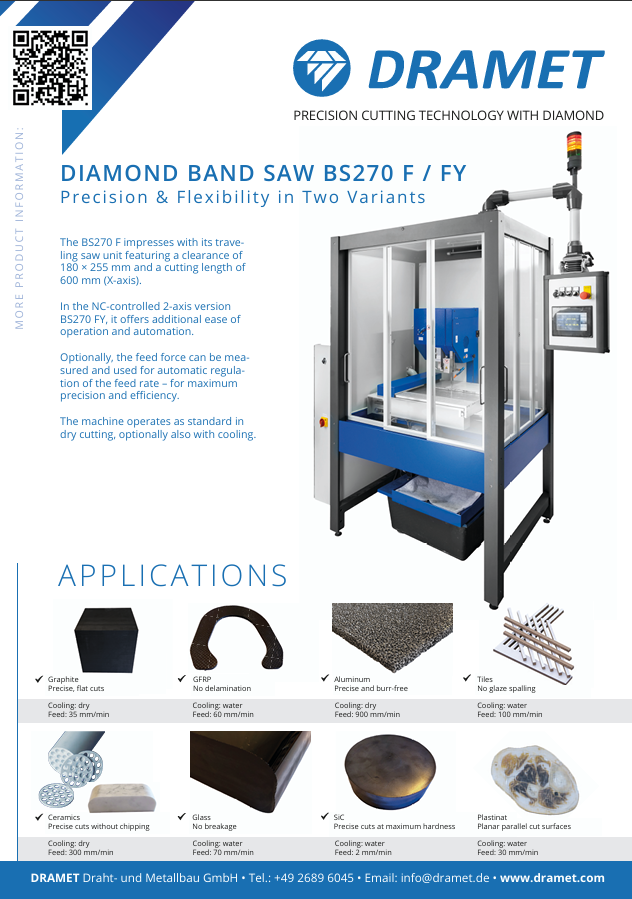

- Diamond Band Saw BS270 F/FY
Clearance (HxW) 180× 255 mm, cutting length (X-axis) 600 mm.
The basic version of the machine is the diamond band saw BS270 F, which is characterized by its movement in the X-direction.
The BS 270 FY is available as an NC-controlled 2-axis machine.
As an option, the sawing forces can be used for feed control and shown on the display. The feed force occurring during sawing is displayed on the screen and the feed rate and cutting speed are set manually or controlled automatically according to the programmable target force.
The diamond saw cuts in dry cutting mode and optionally also with cooling.
The BS270 F and FY diamond band saws cut different materials
Optical glass cutting with diamond band saws
Materials for diamond band saws, glass sawing, cutting, abrasive cutting
GRP sawing with diamond band saws
Materials for diamond band saws, cutting CFRP
Sawing graphite with diamond band saws
Materials for diamond band saws, graphite cut-off grinding
Industriekeramik sägen mit Diamantbandsägen
Materialien für Diamantbandsägen, Glas sägen, schneiden, trennschleifen
Technische Keramik Bearbeitung mit Diamantbandsägen
Technische Keramik Bearbeitung mit Diamantbandsägen
Pathologie Säge mit Diamantband
Materialien für Diamantbandsägen, Plastinate sägen, schneiden, trennschleifen, präparieren
Further technical details on the BS270 F and FY diamond saws
The BS270 F basic version with driven traveling column consists of a band unit with two deflection rollers D = 266 mm and a passage (H x W) of 195 x 255 mm. The diamond saw band runs endlessly over two rollers. It is driven and pneumatically tensioned by the upper roller, which is adjustable in height. The band is driven by a frequency converter-controlled 0.75 KW three-phase motor. The belt tension is set via the air pressure adjustable on the pressure reducer. The belt speed can be adjusted from 200 – 2200 m/min using the rotary control.
The belt unit can be moved program-controlled with a ball screw and the servo motor (X-axis). The traverse paths and feed speeds are programmable. The belt unit can be positioned using buttons. Control: Mitsubishi PLC control with touchscreen. The BS270 F becomes the NC-controlled 2-axis machine BS270 FY by equipping it with a Y-table driven by a servo motor.
It can be used for dry cutting or optionally with cooling. For dry cutting, a suction cup is connected to the suction nozzle provided. In the stainless steel machine version, pure water without additives can be used for cooling.
| Technical Data | BS270 F with cab | BS270 F without cabin |
|---|---|---|
| Length: | 1430 mm | 1230 mm |
| Width: | 1400 mm | 1200 mm |
| Height: | 2100 mm | 1620 mm |
| Culvert (H x B): | 180 mm x 255 mm | 180 mm x 255 mm |
| Travel Distance (X, Y): | 630 mm, 250 mm | 630 mm, 250 mm |
| Idlers Ø: | 266 mm | 266 mm |
| Guide Rollers Ø: | 47 mm | 47 mm |
| Standard Band: | 0,7 mm x 8 mm, Length 1870 mm | 0,7 mm x 8 mm, Length 1870 mm |
| Belt Speed: | 200 – 2000 m/min | 200 – 2000 m/min |
| Belt Tension: | 3.000 N | 3.000 N |
| Drive: | Three-Phase Motor 750 W | Three-Phase Motor 750 W |
| Weight: | 310 kg | 220 kg |
Measuring unit for measuring the feed force
The feed force generated during sawing is displayed on the screen. This allows the feed rate and cutting speed to be set optimally.
Belt cleaning
Belt cleaning with high-pressure spray register. High-pressure cleaning of the saw band below the processing point ensures that the band re-enters the cut cleanly.
Coolant system with filter insert
Collecting tray with drain into the coolant tank, coolant pump, coolant supply with stopcock and articulated hose, automatic control of the coolant system. An approx. 0.7 x 0.7 m filter fleece can be inserted and replaced if necessary.
Spray protection cabin
Machine enclosure with Plexiglas insert to protect against splash water
Additional options
Coolant system with filter insert
Collecting tray with drain into the coolant tank, coolant pump, coolant supply with stopcock, automatic control of the coolant system. A filter fleece measuring approx. 0.7 x 0.7 meters can be inserted and replaced if required
Coolant system with deep-bed belt filter
Collecting tray with outlet into the deep-bed belt filter, filter fleece roll on transport roller, deep-bed belt filter with collection container, coolant pump, coolant supply with stopcock, automatic control of the coolant system
NIRO version Stainless steel version
Support and plates of the machine and the coolant system made of aluminum or stainless steel, shafts and bearings made of stainless steel. With this version, pure water can be used without additives
HD-BA
High-pressure coolant pump, supply line, nozzle for belt cleaning
BS-LL
Line laser for displaying the cutting line
Reinforced belt drive motor
1300 watt belt drive controlled by frequency converter. Useful when a high torque is required at belt speeds above 1300 m/min. Surcharge compared to the 0.75 W drive
Spray booth locking mechanism
The cabin is automatically locked during the cutting process
5380
Power socket for connection and automatic control of an extraction unit
